HSR-PM1525T-3S
HONSIRON-PM
| Quantity: | |
|---|---|

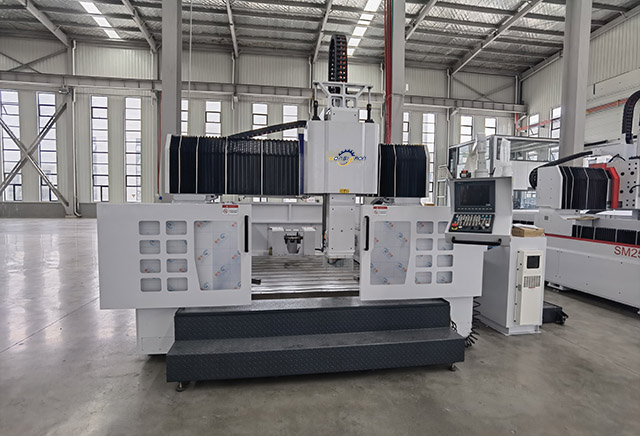

3 axis CNC Router machine casting aluminum mold milling CNC machine center
"Honsiron" CNC soft metal milling machine is high-grade machine for soft metallic materials. It is researched and developed With Taiwan senior technical adviser's guidance. With 20 years' experience in R & D, our engineer team have assumed the provincial key scientific and technological innovation projects for three consecutive years in Shandong Province, with strong technical strength and leading design concepts, combined with high-quality mechanical structure and electrical components, given the excellent performance of the machine.
This CNC soft metal milling machine is used for processing large pattern, such as aluminium pattern, copper pattern, especially for foundry, die casting, mining machinery, industrial machinery, automobile, rail transportation, engineering, wind power, pump valve and so on.
| |
Technicah Date
| Machine model | HSR-PM1525T-3S/PM2030T-3S/2040T-3S/3040T-3S |
| XYZ working area | 1500*2500*800mm/2000*3000*1000mm/2000*4000*1200mm/3000*4000*1500mm |
| Machine structure | Steel structure with cast iron table combined, T-slo; X axis beam steel welding, steel welding and internal additional strong ladder stepper Y axis special thickening steel pipe welding( square tube with internal additional gluten welding) Z axis Enclosure structure, beam steel welding |
| Spindle | Mechanical BT40 spindle,10kw spindle servo motor, 0-12000rpm Oil cooling system with industrial chiller |
| Controller system | Taiwan control system with bus communication |
| Servo motor and driver system | YASKAWA servo motor and driver with absolute encoder |
| Positioning accuracy | X: 0.025mm Y: 0.025mm Z: 0.025mm |
| Voltage power | 380V 3 phase 60HZ or customized |
Application
Soft metal pattern industry: Aluminium pattern, cast aluminium mold, copper mold, magnesium alloy pattern, Aluminium alloy etc.
Wood pattern industry: wood pattern for foundry, casting, Mining machinery manufacturing, Industrial Machinery Manufacturing, Wind power Manufacturing, valve pump making, and many other industry.
Styrofoam EPS pattern industry: Styrofoam EPS pattern industry: foundry, casting, Industrial Machinery Manufacturing, Mining machinery Manufacturing, Car Mold Manufacturing, Ship Mold, Yacht Manufacturing, and other industry.
Materials: aluminium, copper, brass, wood, styrofoam, polyurethane, sand, epoxy, wood with nail inside, MDF, plastic and so on

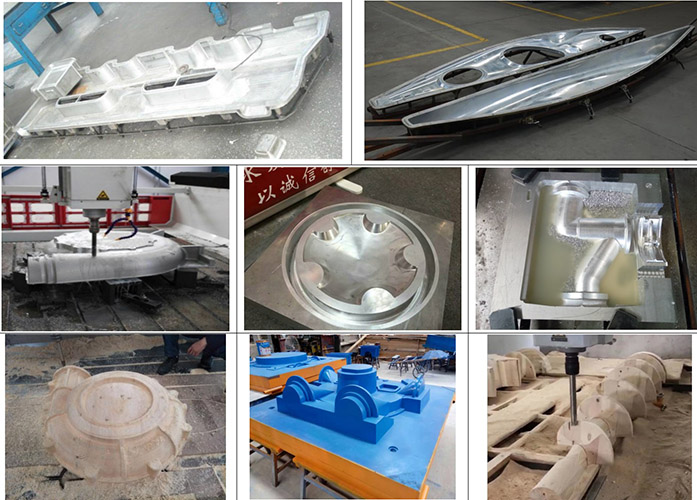

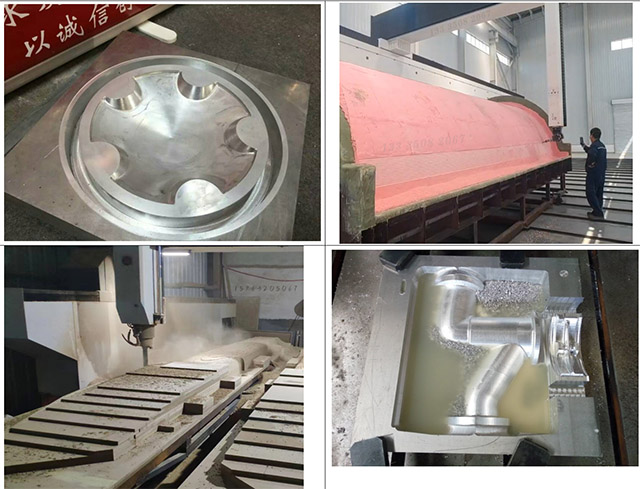

Samples
 |  |
