HSR-PM6025T-5S
HONSIRON-PM
| Quantity: | |
|---|---|

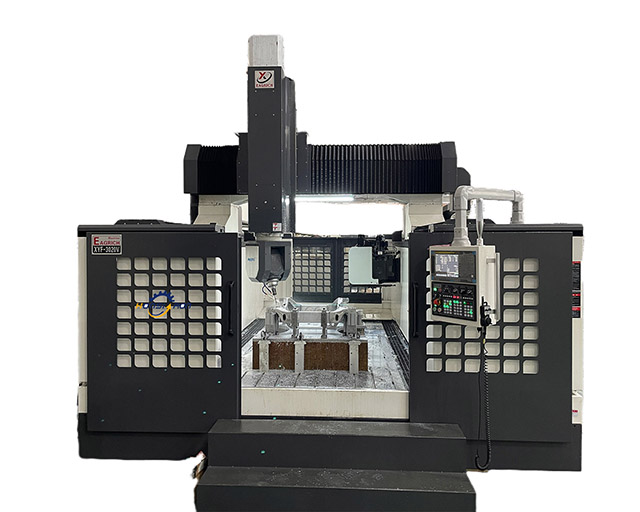

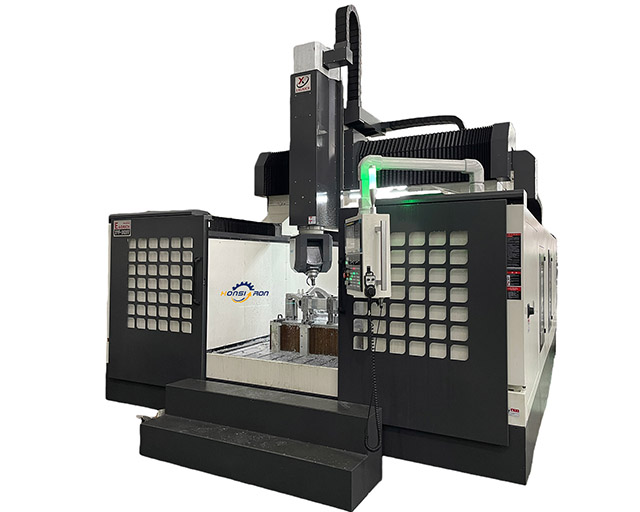

Casting Industry aluminum mold processing 5 axis cnc machine 5 axis cnc milling machine
HSR 5S series(HSR-PM1525T-5S /2560T-5S/3565T-5S/35120T-5S) 5-axis CNC router comes equipped with X-axis, Y-axis, Z-axis, A-axis, and C-axis operation, giving it excellent operating flexibility. It is equipped with a 5-axis linkage control system making it ideal for composite materials, aluminum and wood processing, cutting and carving large 3D models, casting molds, and sculptures.
This series 5 axis cnc machine center support is highly customized, from the specification to size, for more details, welcome your inquiry!
Application:
Industrial Design: processing design of master models for automobiles, yachts, high-speed rail EMUs and other products.
Composite Materials: precision processing of FRP male molds, FRP products cutting and trimming, ABS plastic products cutting and trimming, wind power cover processing, yacht hulls and high-speed rail EMU interior parts.
Mold Industry: five-axis processing of various non-metallic molds such as glass fiber reinforced plastic wooden molds, cast wooden molds, foam substitute wood resin products, etc.
Ceramic Sanitary Ware: plaster molds and various plaster products processing.
5 axis cnc machine,woodworking cnc router,wood cnc machine
| |
Technical Date
| Machine Model | HSR-PM1525T-5S/ HSR-PM2560T-5S |
| 3 axis XYZ traveling area | 3000*2000*1200mm |
| 5 axis XYZ working area | 2200*1200*1000mm |
| A axis Max rotation angle | ±110° |
| C axis Max rotation angle | ±360° |
| Machine Structure | All-cast structure design HT300 |
| Working table size | 3000*2000mm |
| Working table | T-slot |
| Spdinel | Italy HITECO 18-21.5KW,28.6-34.2 N.m |
H Type direct-drive five-axis head | Tool holder HSK-A63 |
| Servo motor and driver system | Japan Yaskawa absolute bus servo motor and driver system |
| Controller system | Taiwan Syntec 5 axis controller system |
| Machine size | 4850*4255*8000mm |
| Power requirements | 3Φ380V ±10V 50HZ |
