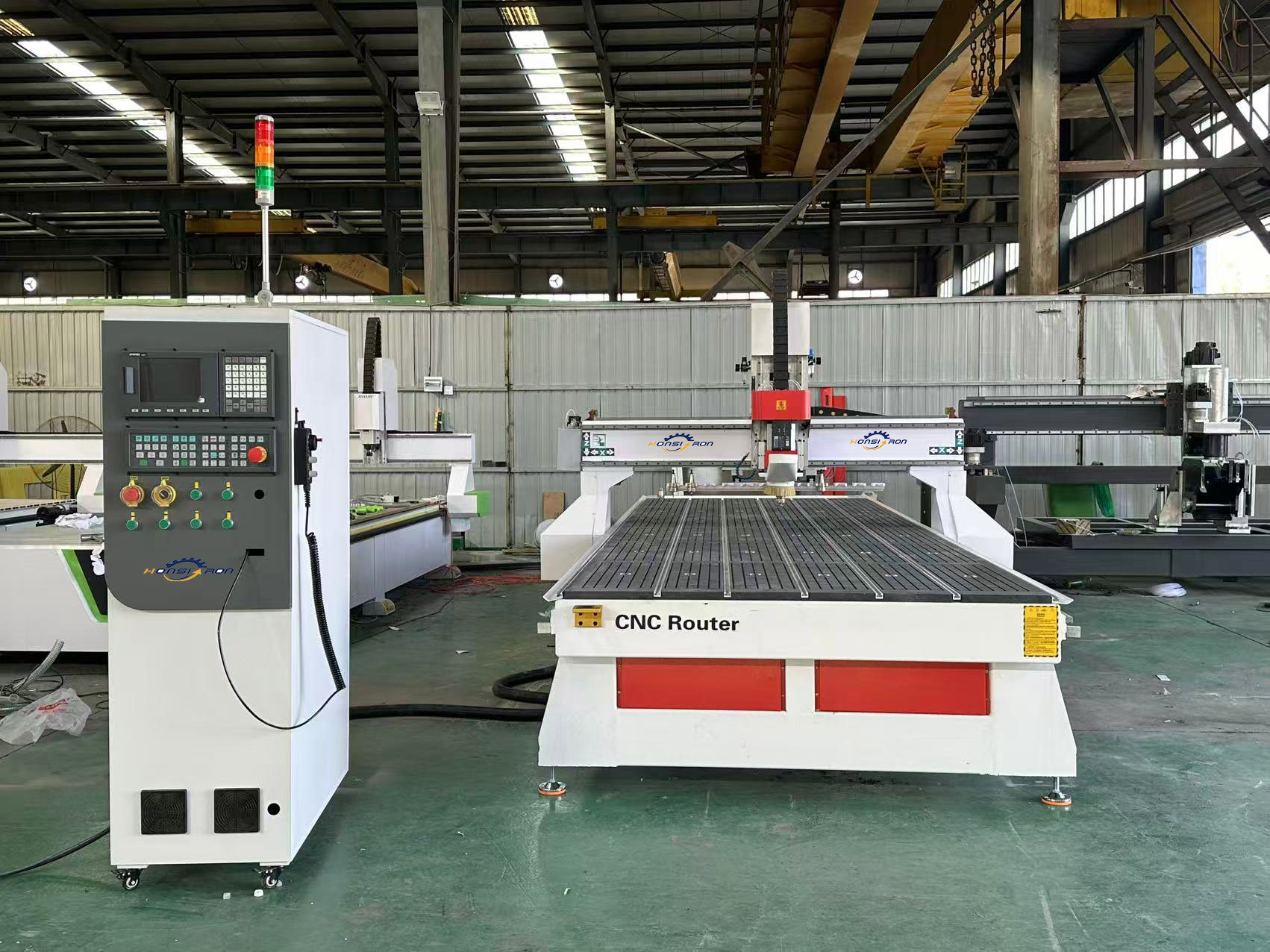

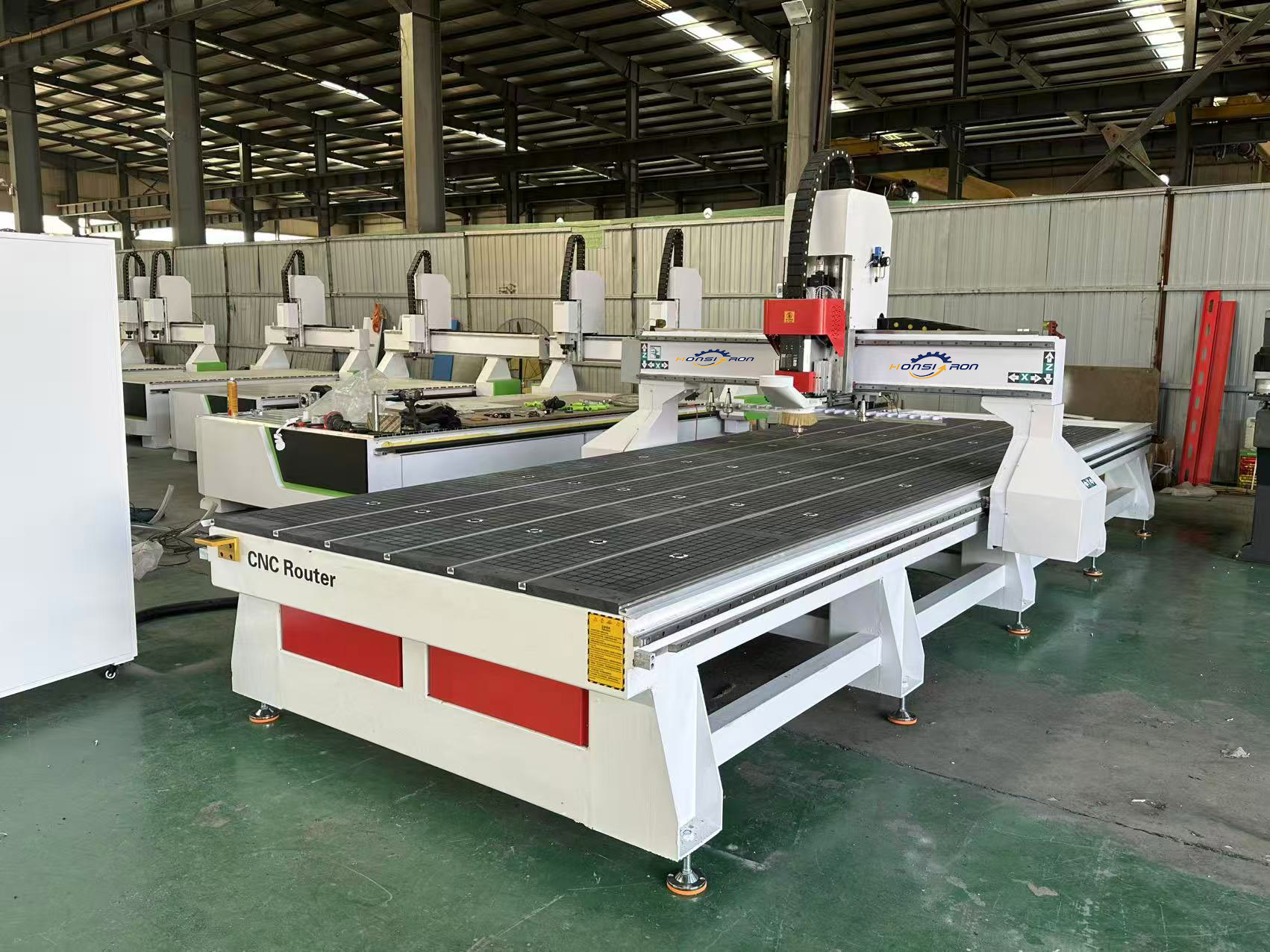

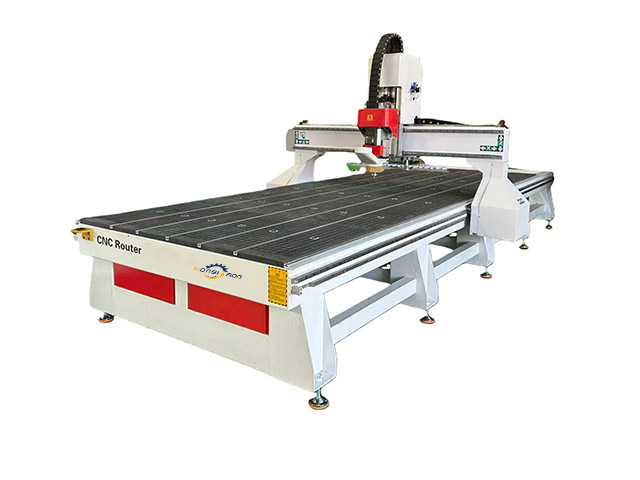

Aluminum Composite Panels Processing Machine 3 Axis Woodworking CNC Router Machine

Aluminum composite panels are composite materials made by hot extrusion processing on specialized production equipment. They consist of two layers of aluminum sheets with decorative and protective coatings on the top and bottom, and a mineral-filled core material in between. Aluminum composite panels possess properties such as lightweight, high strength, fire resistance, weather resistance, ease of processing, acid and alkali resistance, and sound and heat insulation. So they are widely used in building curtain walls, interior and exterior decoration, advertising signs, vehicle and ship decoration, and furniture manufacturing.

What are the advantages of using 3-axis CNC machining for aluminum composite panels?

****Machine economical and affordable

****High precision: Capable of cutting complex geometric shapes with an accuracy typically within ±0.05 mm.

****Smooth edges: Compared to manual cutting, CNC machining produces smooth, burr-free edges, reducing the need for secondary sanding.

Recommend machine specs:

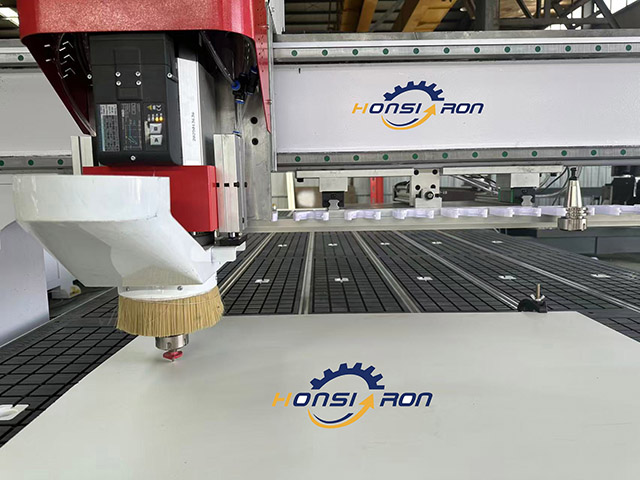

1. Original imported Italy HSD 9.0KW spindle;

2. Vacuum adsorption table matches with high-power vacuum pump combined with a partitioned adsorption table can firmly fix the panels material, preventing displacement during high-speed machining, especially when cutting small parts.

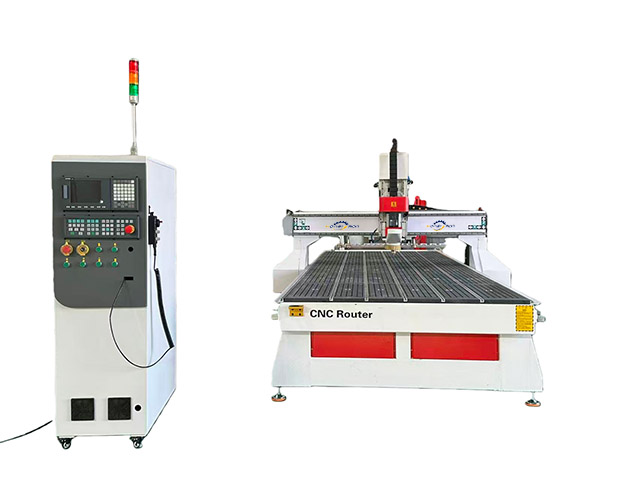

3. Taiwan Syntec control system equipped with "breakpoint continuation carving" function to ensure efficient large-scale production.

4. Transmission and drive system: XY axis uses high-precision helical rack and pinion transmission for high speed and low noise. Z-axis uses a ball screw to ensure precise depth control during tool changes.

5. Uses Japanese Yaskawa absolute bus motors and drive systems to improve processing speed.

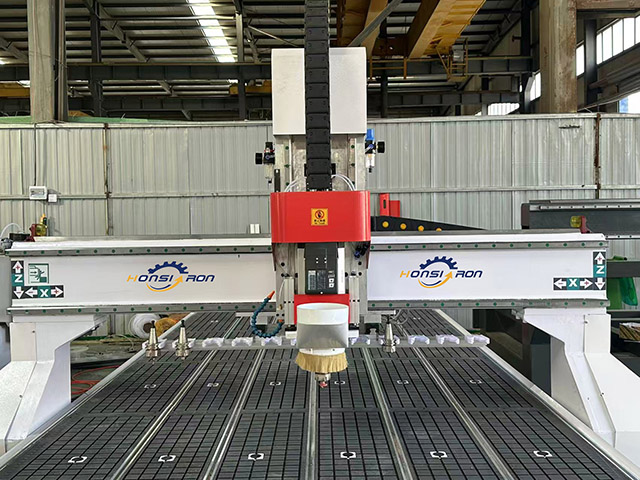

6. Linear tool magazine with 12 tool positions under the gantry beam, moving with the machine to save tool change time and improve processing efficiency

Technical data

Samples
