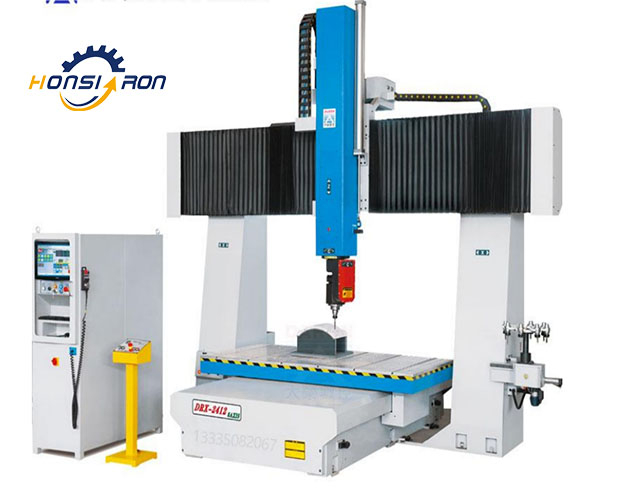

HSR-DR1325A-5S is table movable 5 axis machine center with fast speed, high precision and long life time, with Engraving, cutting, milling, drilling, trimming, etc.
Suitable for Mold industries: sculpture various large non-metallic mold can be particularly: suitable for any kind of Foam (EPS) mold, wooden ship model,wooden model aviation and other wooden mold.
Furniture industry: wood/solid wood complex furniture manufacturing, do 2D and 3D dimension processing.
Machine Parameters
Model | HSR-DR1325A-5S |
XYZ working size | 1300mm*2500mm*800mm |
A/C Axis Working Area | ±120°/±360° |
Structure | Specially designed and welded structure of square tube/steel plate |
Working table | Table removable&Gantry fixed, High-strength aviation aluminum alloy with T-slot |
Transmission | XYZ ball screw transmission |
Spindle | Original Italy 15Kw water cooled spindle |
Spindle speed | 0-24000RPM |
Controller system | SYNTEC 5 axis controller system |
Motor and driver | Japan YASKAWA brand |
Working Voltage | AC380V 3Phase 50-60Hz(or customized) |
5-axis sample
