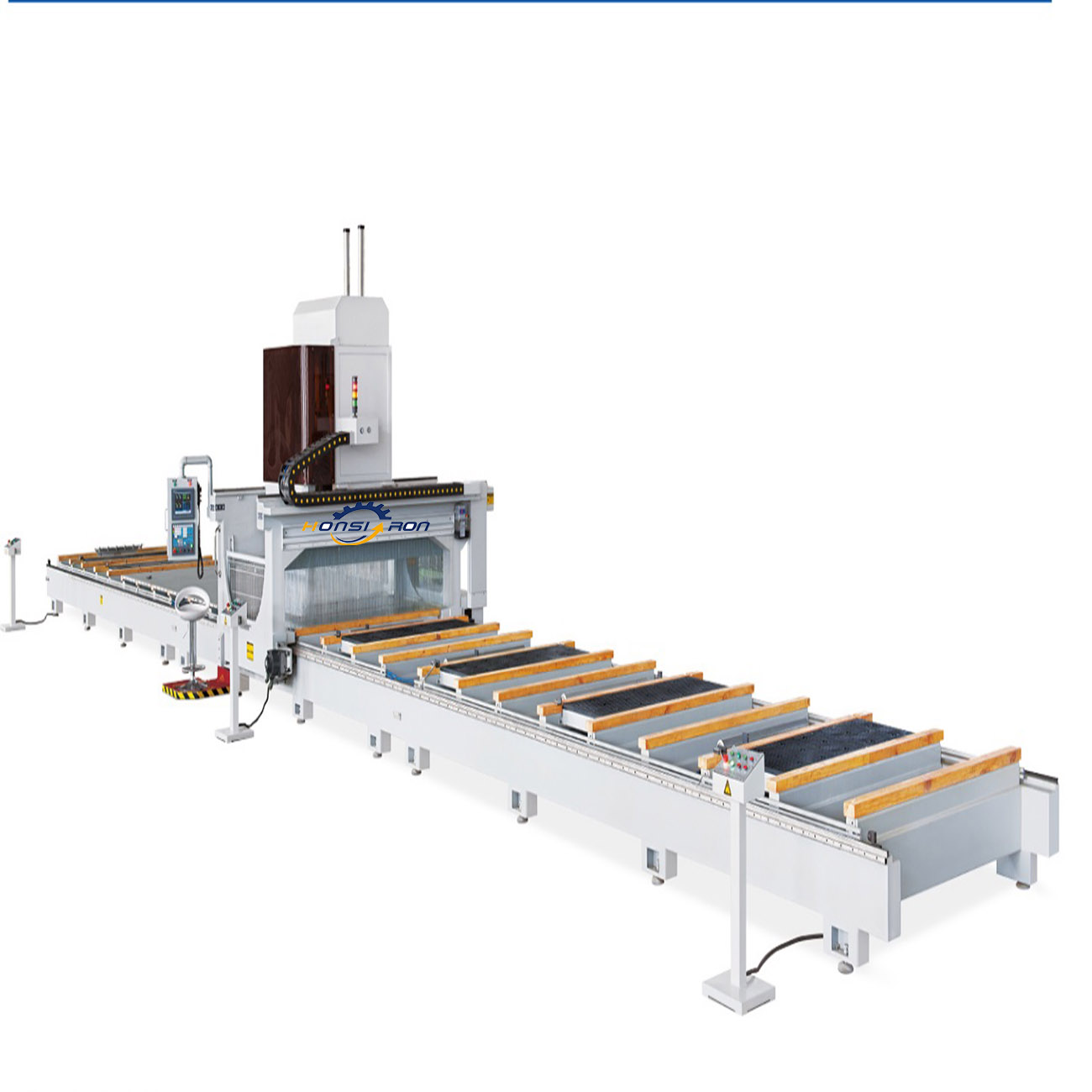

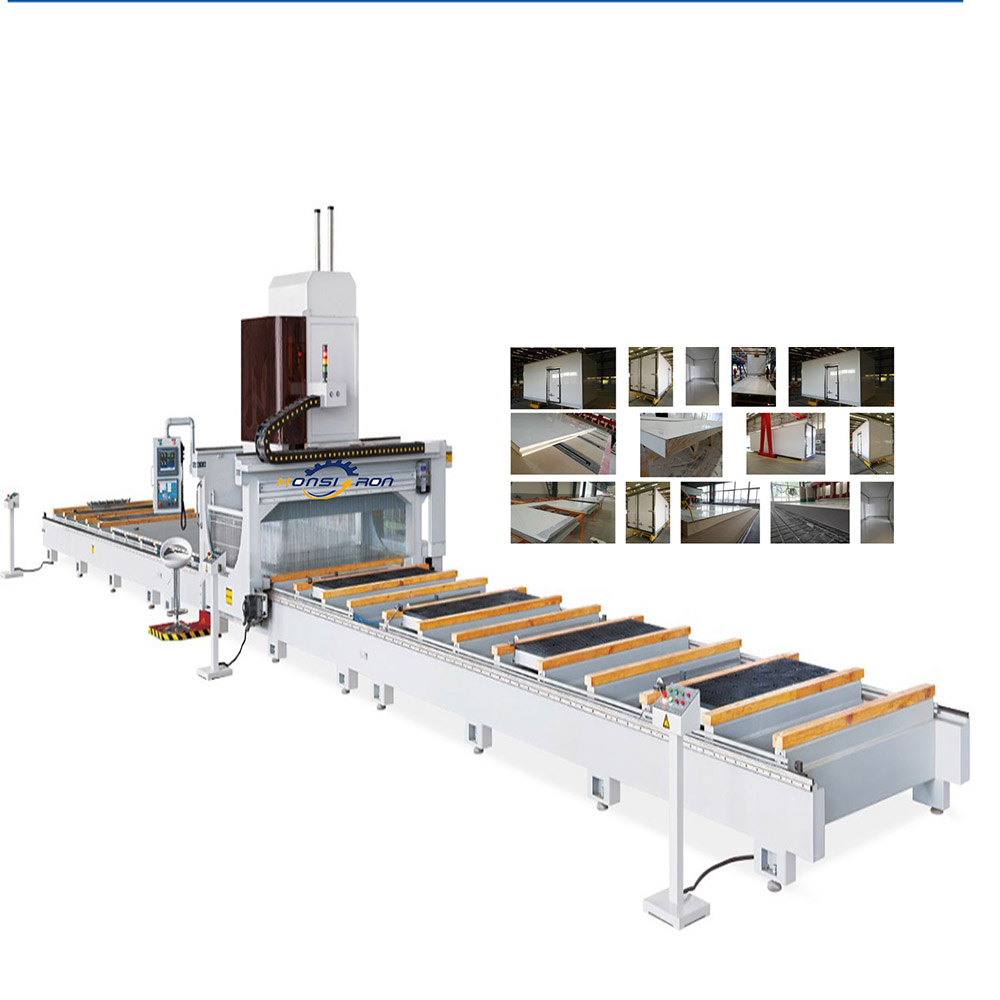

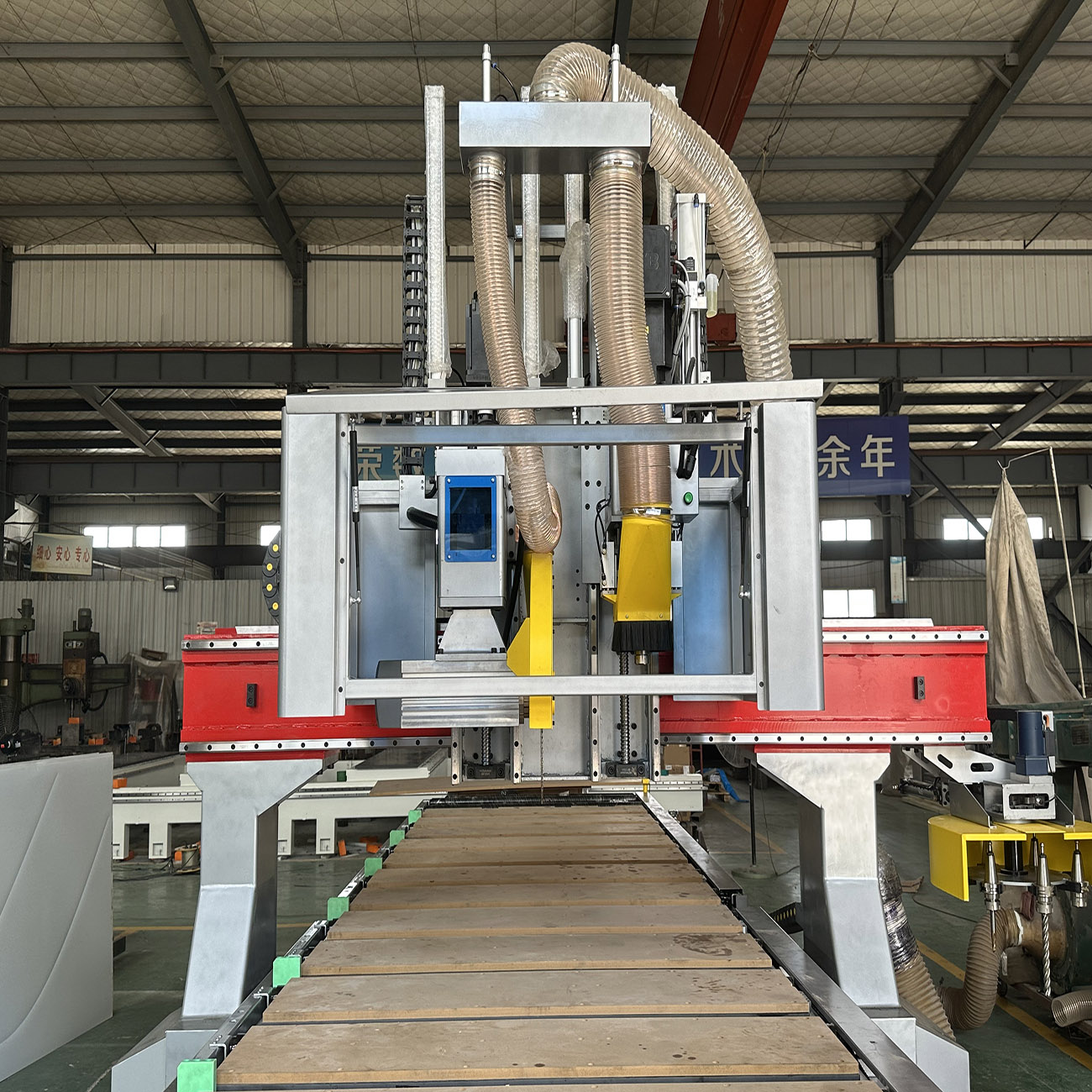

Composite insulation panel gantry CNC machining center series,machine model: HSR--MS1370AC.

     With the rapid development of the manufacturing industry, high speed, high precision, high efficiency, safety and environmental protection, and multi-axis compound have become the mainstream of the development of today's processing centers. HONSIRON-DARON CNC composite board CNC gantry machining center is developed by DARON introducing and absorbing foreign advanced technology. It optimizes the design of transmission structure, matches the rigidity and quality parameters of machine tools, and makes it a high-end product with rapid response.

It can process large sandwich structure warehouse boards and insulation boards with skins on both sides, a middle skeleton and filled core materials.Equipment positioning accuracy ≤±0.1mm, repeat positioning accuracy ≤±0.05mm.

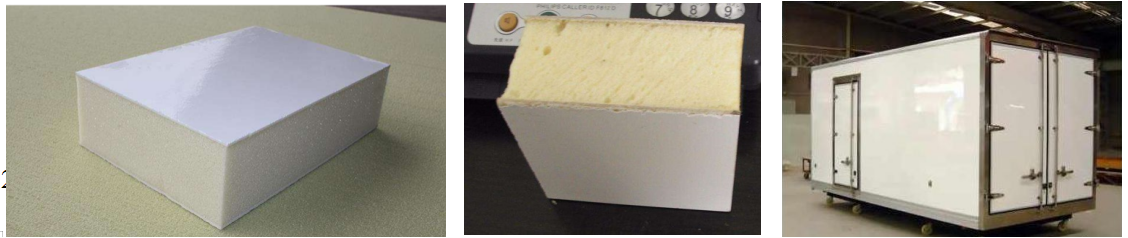

The equipment can process panel structures:

     1. Sandwich composite plates made of fiberglass fiberboard skin (with fiberglass reinforced profiles or wood core,foam core, rock-wool core and so on);

     2. Process Sandwich composite plates made of aluminum alloy sheet/steel sheet skin (with metal reinforced profiles or wood inside);

     3. Sawing aluminum profiles and aluminum plates;

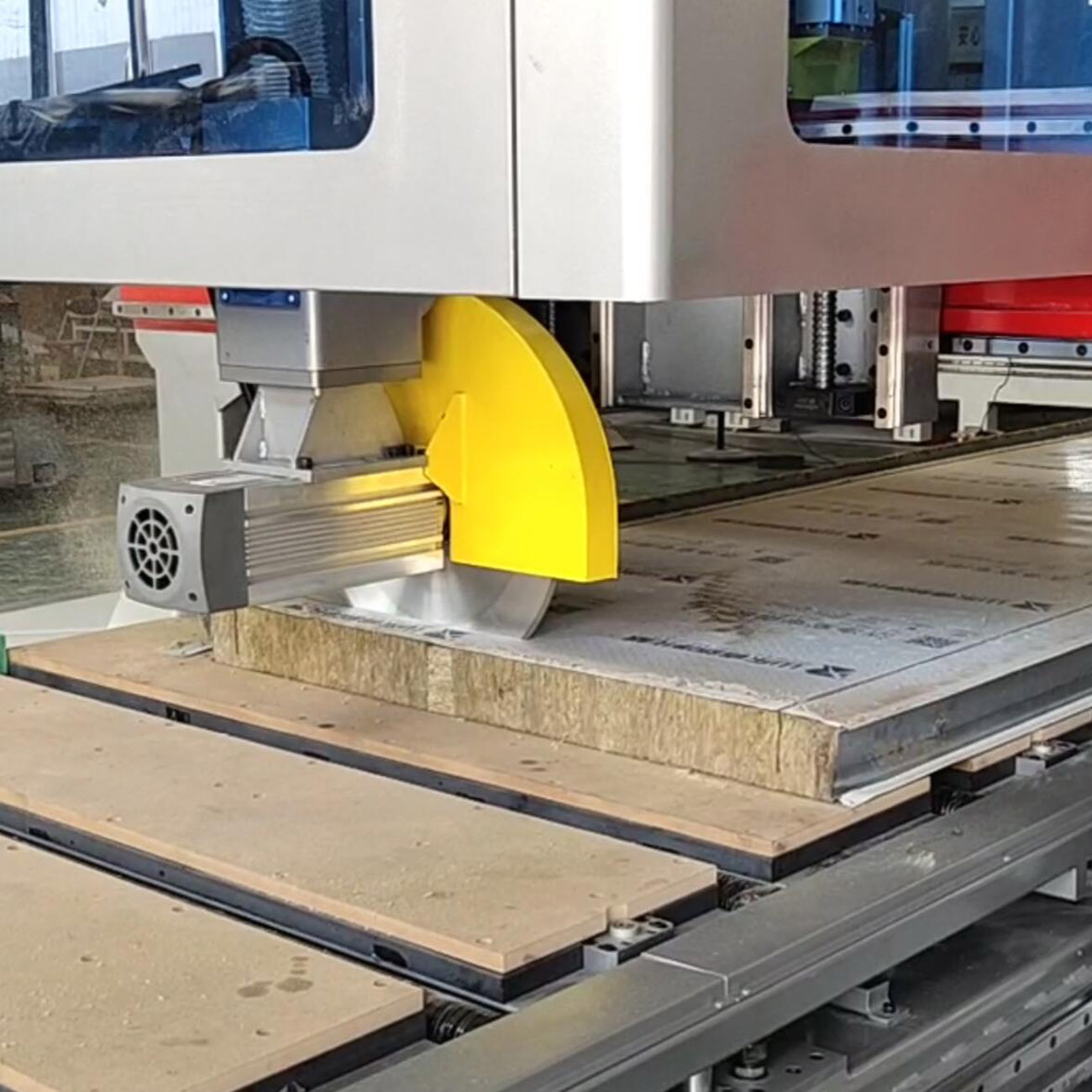

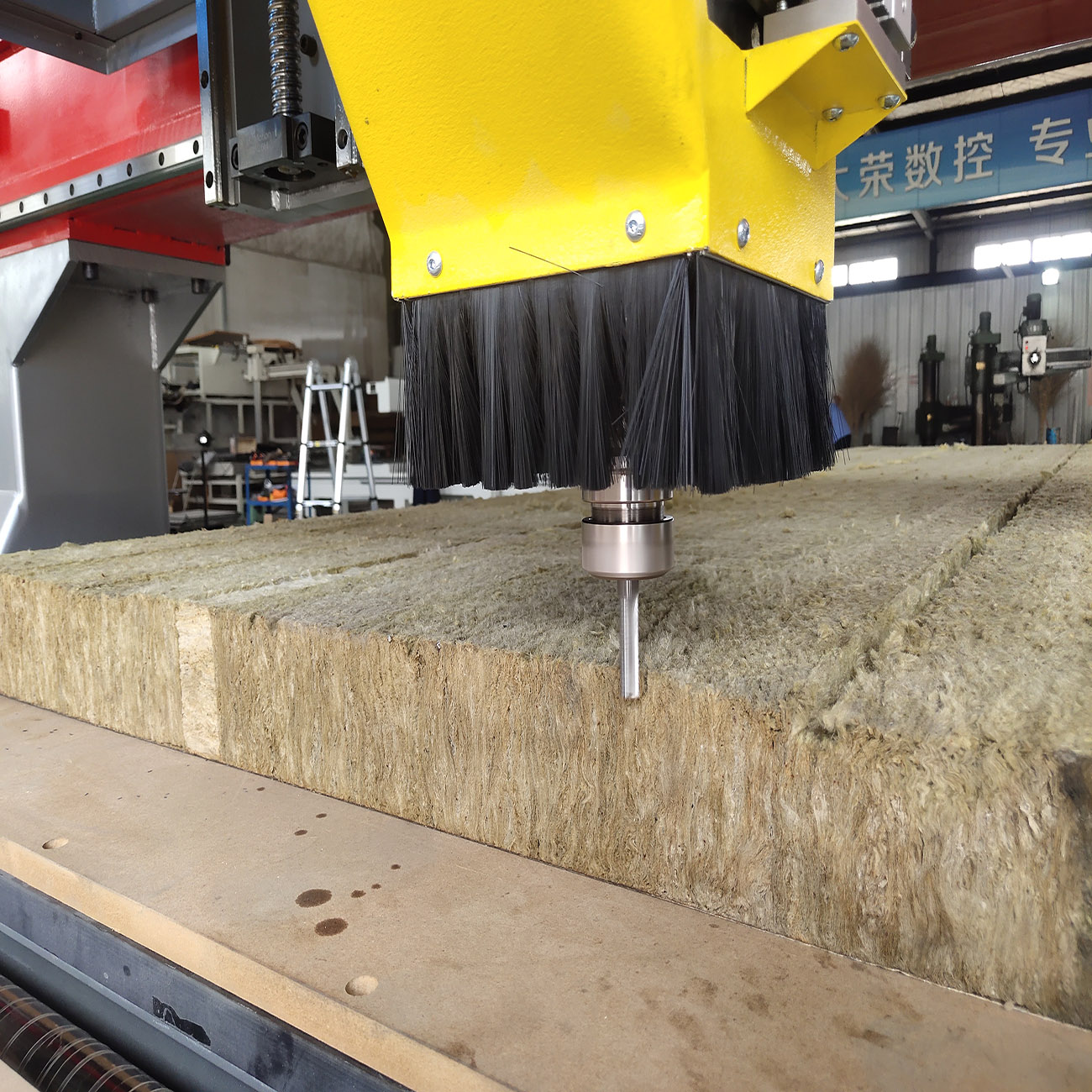

       HSR--MS1370AC CNC machine center with automatic loading unloading system, according to the characteristics of new composite materials and the production characteristics of the process, uses support power transmission rollers to automatically load materials, and then enters the machining center for automatic positioning, intelligent cutting, milling, drilling, etc., and automatically unloads materials after processing. The equipment uses a four-axis rotary saw, combined with the automatic tool change machining center technology, which can perform intelligent production such as rapid sawing, engraving and milling for composite materials.

Machine Parameters

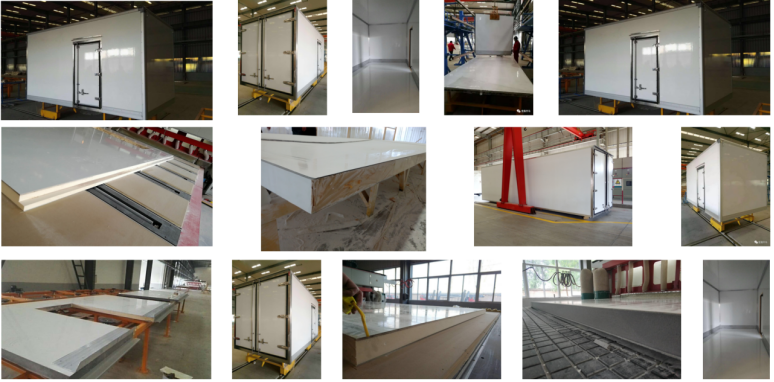

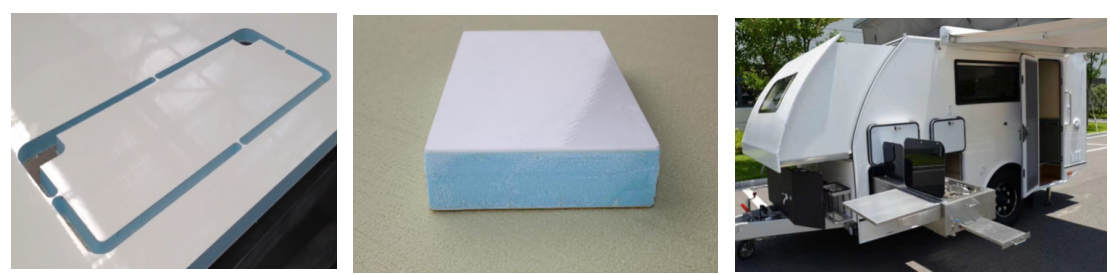

Sample
