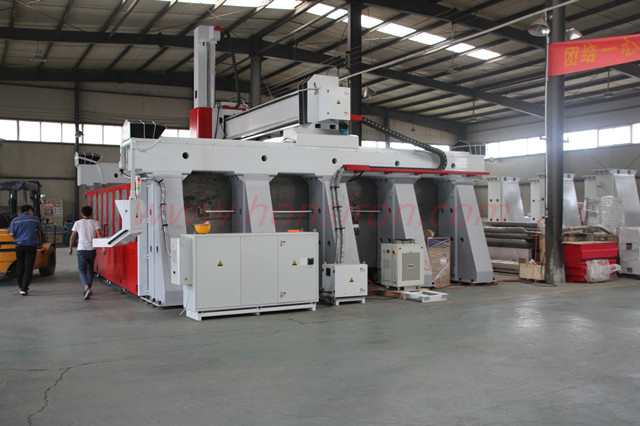

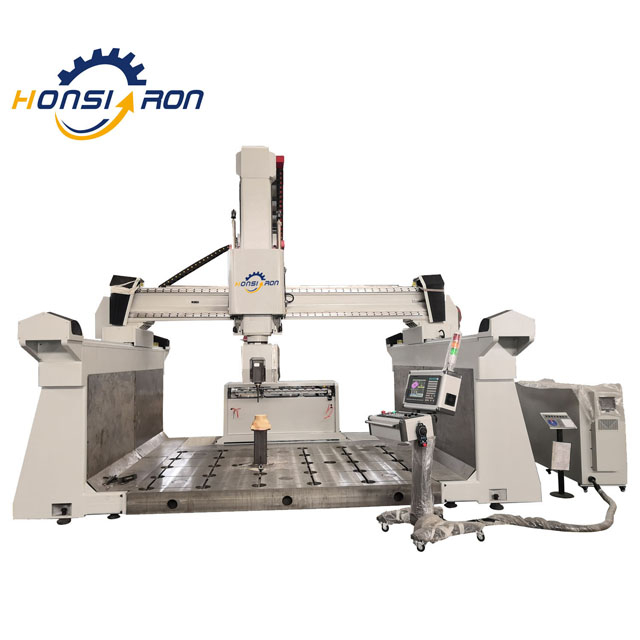

Production Description

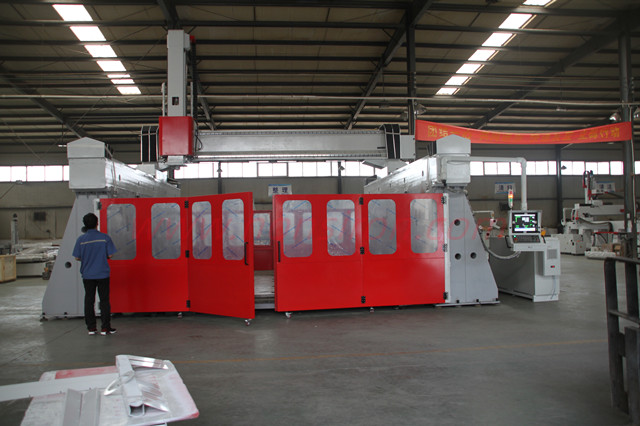

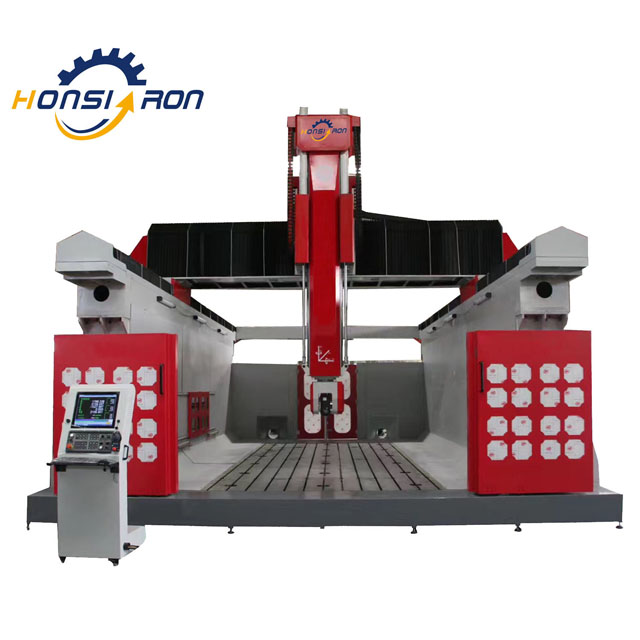

HSR-T3565-5S is Gantry movable 5 axis machine center， larger travel structure design  and more robust body construction realized with fast speed, high precision and long life time, with Engraving, cutting, milling, drilling, trimming, etc...

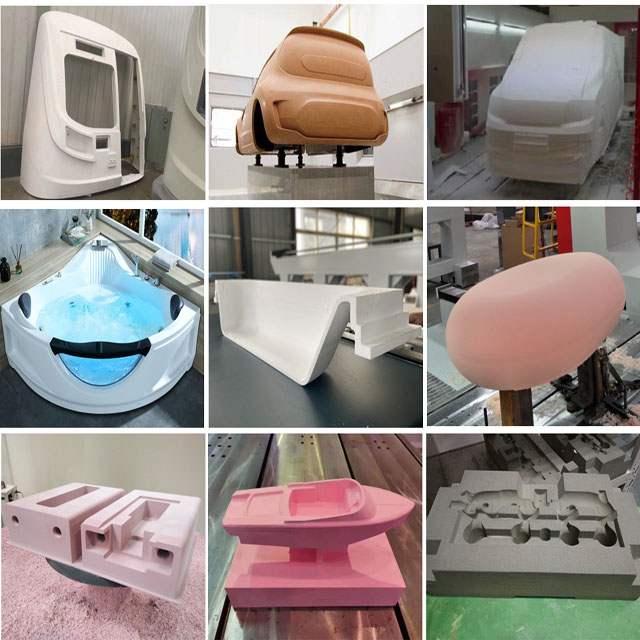

Application

###Die industry:Any sculpture of aluminum,foam,plastic,PVC,wood, fiberglass and other

soft-metallic materials;

###Mold industry: Any type car mold, boat mold,foundry mold,aviation mold, dia mold,

etc;

###Plate processing industry:insulation,aluminum,plastic and chemical,the PCB, move the

car body,bowing, track, stars anti-special board,epoxy,resin,ABS，PP,PE.and other

carbon mixture;

Features

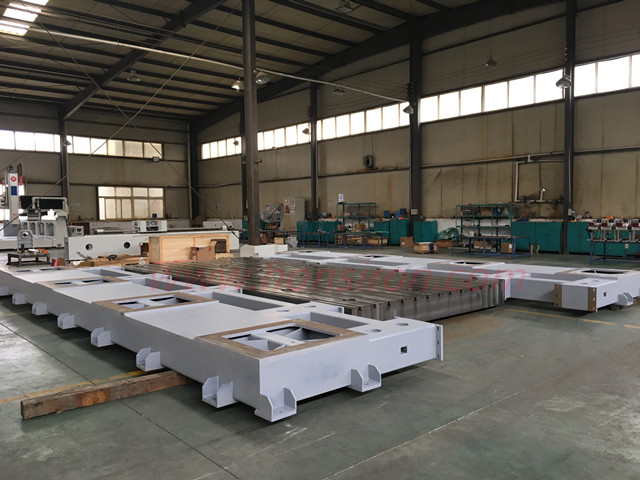

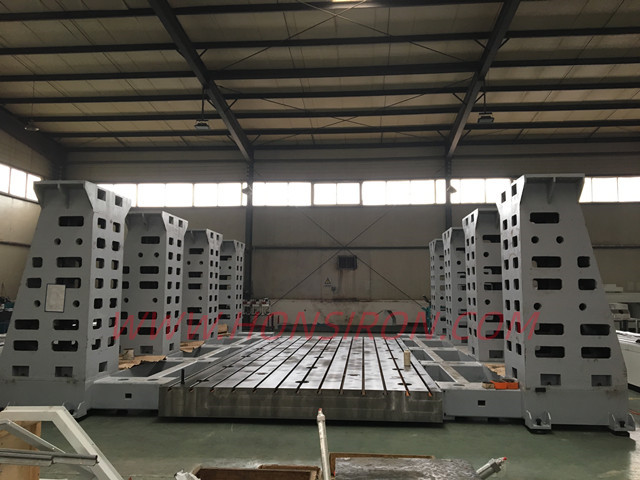

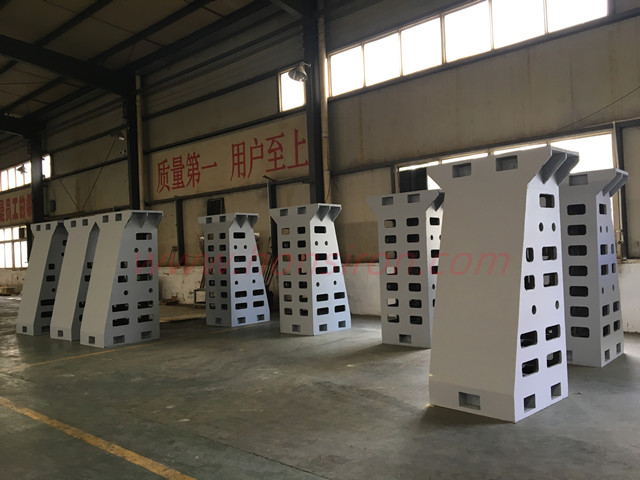

***Adopt computer-aided design to achieve machine's optimum structural design. By

movable gantry and fixed table mode,whole machine is welded with reinforcing steel

structure.Strengthening ribs are welded inside.Many processes of stress relief treatment

greatly improve the whole machine's rigidity and processed by high temperature tempering

treatment to ensure that the stability is excellent, not easy to be deformed;

***Z axis adopt high precision TBI high precision ball screw and the whole Z and spindle

amount plate use the heavy design to allow high accuracy and stability when work for hard

materials;

***Guide rail and rack are covered inside dust proof. Dust proof design will keep them

clean;

***Z axis use dual nitrogen balance cylinder design, which effectively reduces the motors loading power and extend machines service life. No need use air pressure machine;

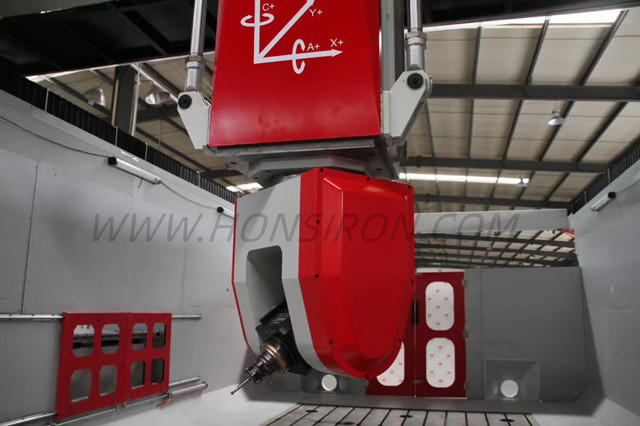

***SYNTEC 5 axis control system with USB connection and window control system

to make the operation more easier and the control cabinet with USA heat exchange

system;

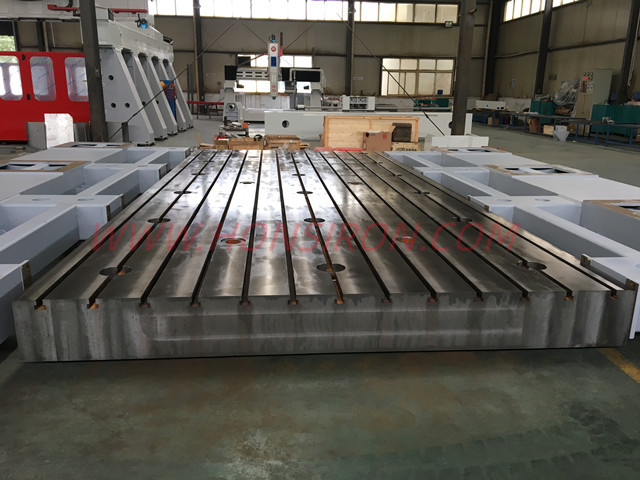

***T-slot cast iron work table, process by high tempering treatment, not easy to be

deformed.The max length for one piece table is 2m in order to fit in the container;

***Other design and spare parts we use the top brand, such as auto Oil system, auto oil

mist system, auto spindle cool system with chiller Germany Igus cable, protective front&

back door...All design to ensure the whole machine with the best performance;
