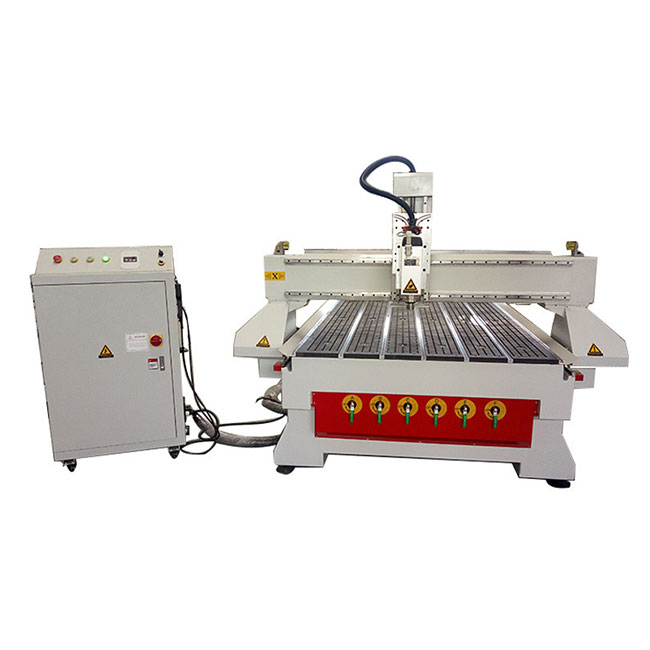

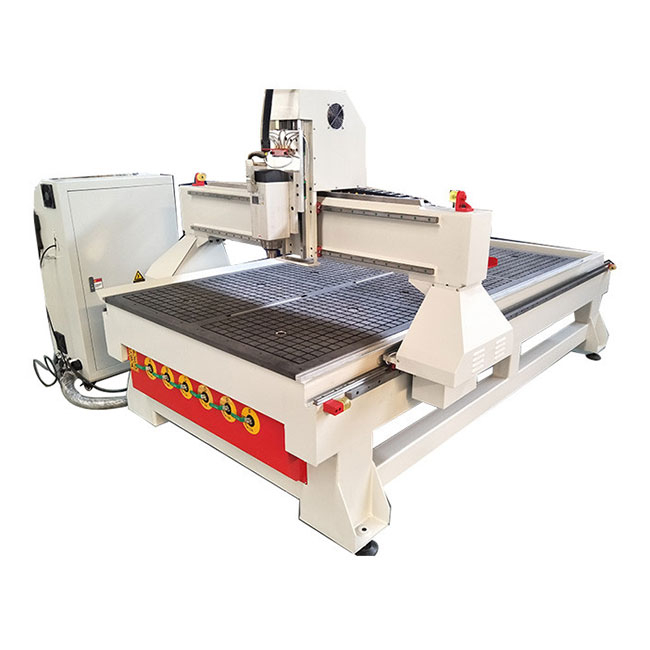

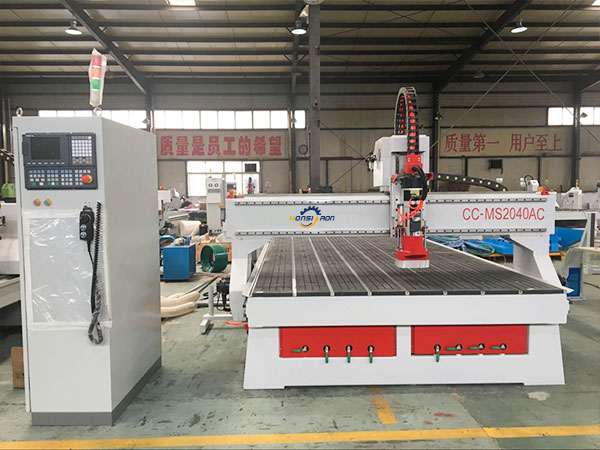

HSRHSR-ATC1325-3S  is one type professional ATC wood router machine which with linear type tool magazine.We offer customer-designed service,you just need to tell us your requirements or the work piece size, materials and we'll give our suggestion.

Features:

***Welded with industrial class square tube,which with strong bed. You can use our cnc

router more than 10 years;

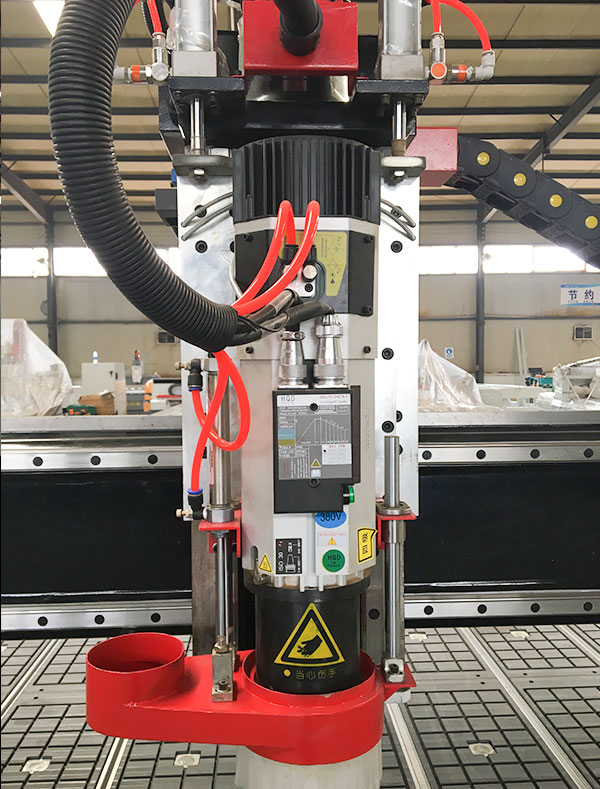

***Air cooling spindle-9 KW ATC air cooling spindle.Well-known brands ,long working life,low noise,strong cutting ability to ensure the long time working;

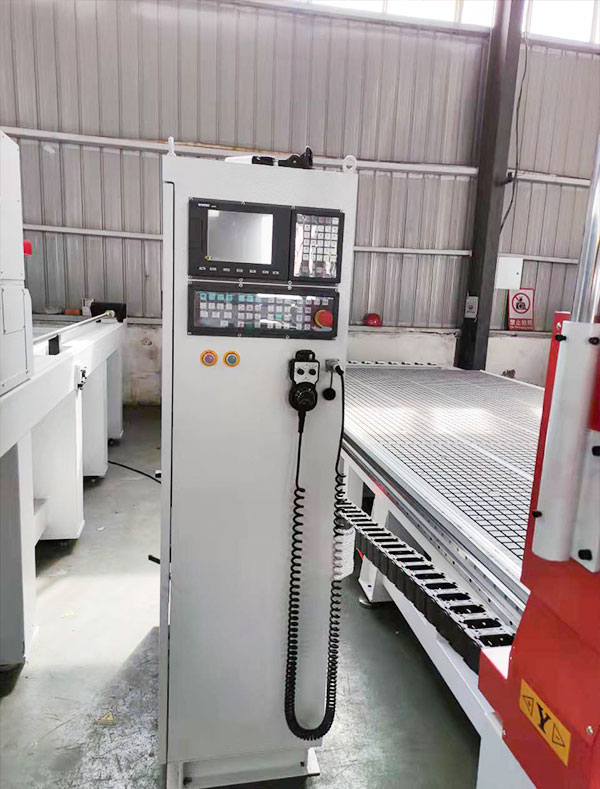

***Taiwan SYNTEC control system-Easy operation.Support offline operation,more table;

Japan YASKAWA servo motors and drivers-High-performance drive motor to ensure that

the machines high speed and accuracy;

***Import linear rail 25# from Taiwan-Smooth and precise transmission,low noise,and

lifetime is 10 times longer than common rail way;

***Vacuum&T-slot combined worktable--Can both absorb big materials by vacuum power and fix small materials by clamps.There is MDF boardon it for protection;

***Helical rack transmission--Ensure fast speed,big loading capacity,strong powering

lifetime, and it ensures the machine more stable;

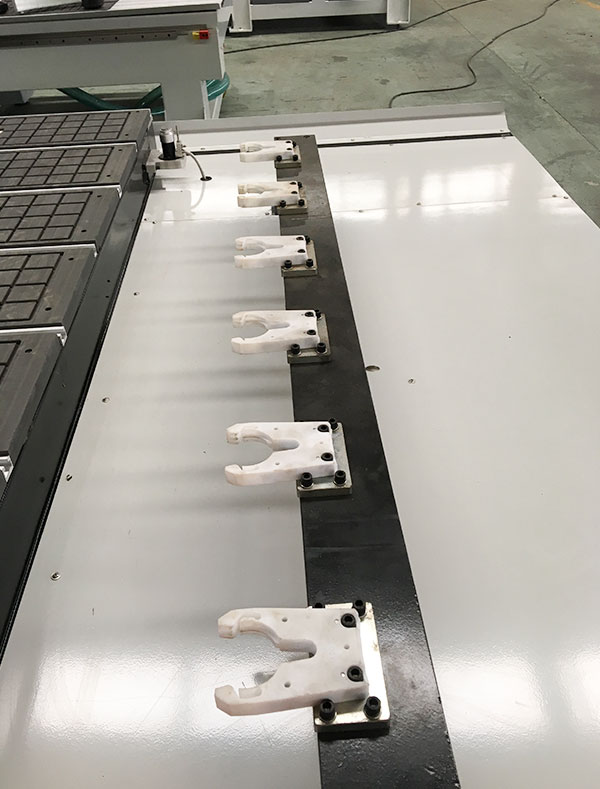

***Linear Tool Magazine(ATC 1325cnc router)--With 8 tool holders and 8 tool forks,can

save working time and will work so convenient. Can also choice the 6 or 10 tool holders

Parameters:

Working Size:1300*2500*250mm(Can be customized);

Spindle Power: 9KW ATC air cooling spindle;

Spindle Speed:24000RPM;

X,Y axis:Helical rack,Taiwan 25# Rail Linear Bearing;

Z axis:Taiwan Rail 25# Linear Bearing&TBI Ball Screw

Max.Rapid Travel Rate:50000mm/min; Max.Working Speed:35000mm/min;

Servo motor and driver: Japan YASKAWA;

Control System:Taiwan SYNTEC control system;

Table:T-slot & vacuum Table;

Frame:Welded Structurer

Invert:11kw Invert;

Collect:ISO30;

Cable:Germany Igus cable;

Working Voltage:AC380V/50/60Hz3PH(Option:220V);

XY Resolution:<0.01mm;

Software Compatibility:Type3/UcancameV9/Artcam Software;

Running Environment Temperature:0-45Centigrade;

Relative Humidity:30%-75%;

Applications:

1.Advertisement:engraving and cutting of various labels and number plate,marble,etc

for artistic effects on materials. Including marble,brass, steel, and other metallic materialh

2.Crafts:engraving characters of any language and patterns on gifts and souvenirs,

primitive processing and shaping ofartistic crafts,and stiletto;

3.Decoration industry:acrylic,PVC,MDF,artificial stone, plexi-glass,plastic, and copper

and aluminum and other soft metal plate engraving and milling cutting;

4.Architectural models:engraving fine window,fencing and wall patterns, etcy

5.Seal:engraving seals and medal on materials such as buffalo horn, wood etc;

6.Label:engraving character, number,and other pattern on label for products and on

product directly;

7.Wood processing: processing density board, stiletto for surfing board, processing of

marbles,cabinet and furniture;
