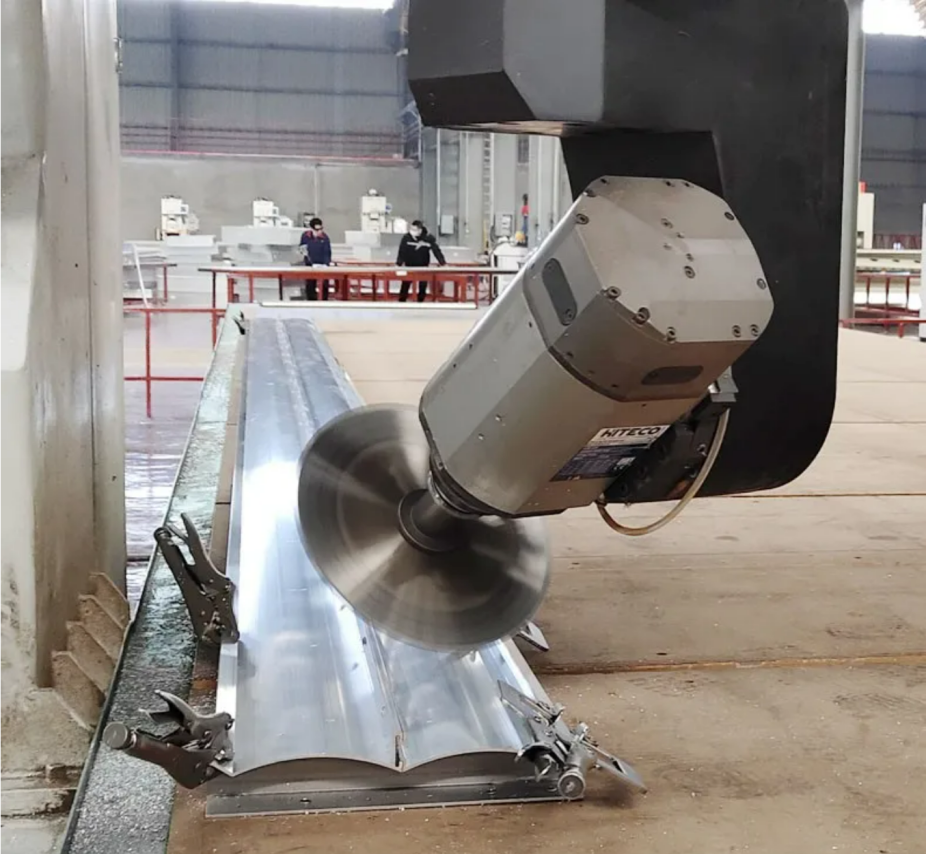

Five-axis CNC Router --Aluminum profile CNC machining center

（一）Common application areas of aluminum profile CNC

Machinery manufacturing industry: mainly used to produce various types of precision mechanical parts;

Electronic industry: In the manufacturing process of computers, communication equipment, household appliances and other products, aluminum profile 5 axis CNC machine would provide high-precision shells and internal structural parts;

Automobile industry: The automotive industry is one of the important fields of application of aluminum profile 5 axis CNC machine technology, especially in the manufacturing of new energy vehicles, aluminum alloy materials have been widely used. The application of aluminum alloy is not only reflected in the core components such as body, engine, transmission system, but also includes the manufacture of accessories such as interior decoration and brackets.

Aerospace industry: In the field of aerospace, aluminum profile 5 axis CNC machine also plays a vital role. In the manufacture of high-precision equipment such as aircraft, satellites, and spacecraft, aluminum alloy materials have become one of the key materials due to their excellent strength and lightweight performance. aluminum profile 5 axis CNC machine can accurately manufacture aircraft structural frames, engine casings, fuselage parts, etc.

Construction industry: It is widely used in the manufacture of building facades, doors and windows, curtain walls, balcony railings and other components. Through CNC machining, aluminum profiles can be accurately processed into various complex shapes and sizes to meet the different requirements of architectural designers for appearance and functionality.

Solar industry: aluminum profile 5 axis CNC machine technology can accurately manufacture the support structure of solar panels and ensure its strength and durability.

Other high-end industries: Precision instruments, medical equipment, sports equipment and other fields all require aluminum profile 5 axis CNC machine technology to manufacture high-precision parts.

（二）Recommended parameters for aluminum profile 5 axis CNC machine center:

****Aluminum is one of the most commonly used materials in CNC machining because it is lightweight, strong and easy to process. For best results, the cutting tool must be sharp to reduce the heat generated during machining. In addition, the cooling and lubrication speed plays a huge role in the life of the cutting tool as well as the surface finish.

• Spindle speed: 3000-6000 rpm

• Cutting speed: 600-1000 feet per minute (ft/min)

• Feed rate: 0.002-0.005 inches per tooth (IPT)

• Cutting depth: 0.04-0.10 inches

• Surface finish: High spindle speed combined with low feed rate helps to achieve a smooth surface finish.

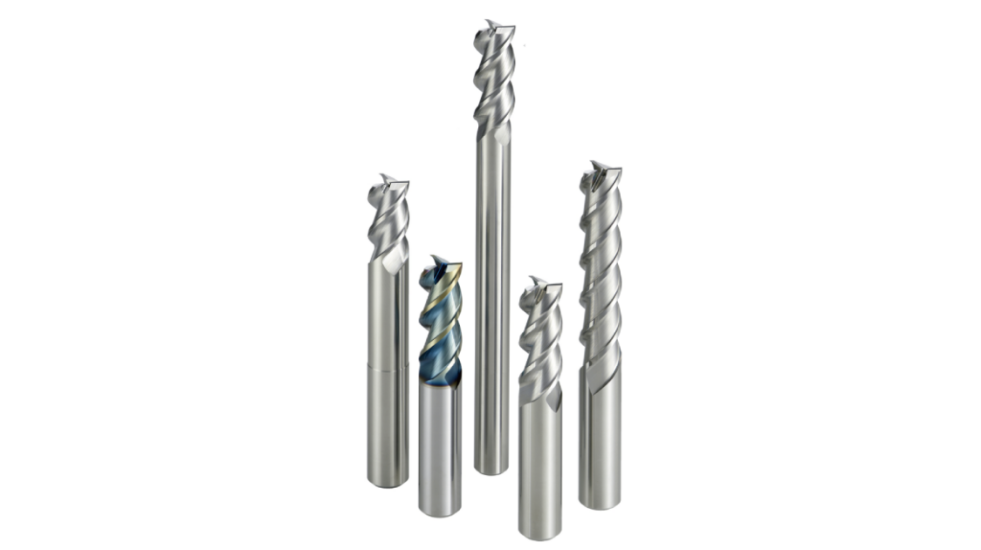

****Tool bits Selection:

Carbide tools: Carbide tool bits are used in aluminum machining because of their hardness or wear resistance. Compared with high-speed steel tool bits, they require less force, can handle higher spindle speeds, and can also provide a richer finished surface.

High-speed steel tool bits: High-speed steels steel tool bits are cheaper than carbide tools, although they may not perform as fast as carbide tools and may not have the same span as carbide tools. But they are suitable for small batch work or less intensive use.

Tool coatings and geometries to improve efficiency

Tool coatings such as TiN (titanium nitride) or TiAlN (titanium aluminum nitride) can significantly improve performance by reducing friction and improving wear resistance. In addition, choosing the right tool geometry can optimize performance:

High helix angle: Tools with high helix angles can improve chip evacuation and reduce the possibility of tool sticking, which is critical for aluminum machining.

Polished grooves: Polished groove design helps to effectively remove chips and prevent chip accumulation, thereby improving overall efficiency.

****Using Coolants and Lubrication in CNC Aluminum Machining

Proper use of coolants and lubrication is critical to managing heat and improving tool performance in CNC machining.

Importance of Coolants for Thermal Management: Coolants reduce heat buildup during machining, prevent tool wear, and ensure better surface finish. They also help flush away chips, improving chip management.

Best Coolant Practices: Water-soluble coolants are generally effective for aluminum machining. Coolants must be selected to be compatible with aluminum to prevent chemical reactions that could degrade the material or tooling.

（三）Common Mistakes to Avoid in CNC Aluminum Machining

It’s amazing how many mistakes even professional machinists would find themselves caught up in that affect the machining process. Here are the common mistakes to watch out for:

Incorrect Spindle Speed

When the spindle runs at the wrong speed, the tool will often burn out and show other early signs of failure. Remember that your spindle speed should always be adjusted for the type of aluminum alloy you are working with.

Incorrect Feed Rate

Using the wrong feed rate can cause severe tool wear or poor surface finish quality. The feed rate must be equal to the cutting speed to get good results.

Poor Chip Evacuation

Poor or inadequate chip evacuation can also cause problems such as chip accumulation, which can lead to poor finish and high tool wear. Therefore, it is important to always have the right chip handling plan in place for your machining strategy.

Ignoring Coolants

Using the wrong coolant means that they may overheat, shortening the shelf life of the tool. Modify the cooling technology to suit the machining conditions of your project.

Inefficient Tool Path Planning

If the correct path for the tool is not planned, more machining time will be spent and tool wear will increase. It is always recommended to spend more time developing the correct toolpath in order to take into account all instances accessible in the process.
